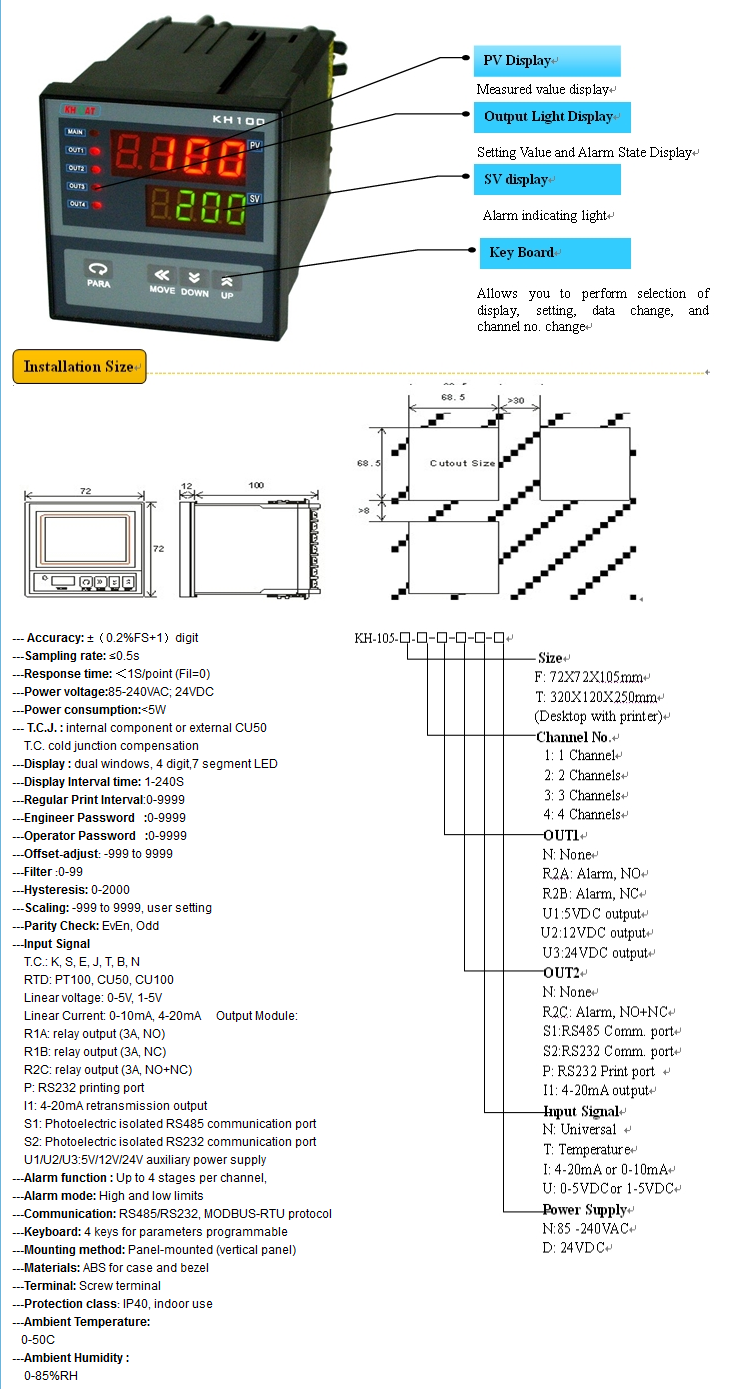

KH105-F Economic Multi Channel Indicator
KH105D is low cost multi channel process indicator (160X80X105mm, up to 48 channels), used the advanced technology, to be designed high quality and performance, high accuracy, single or universal input use, to be aimed to monitor, display, analysis the processes in various industry application.
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University lab, Marine, Sewage treatment etc various application.
1.High accuracy: +-(0.2%FS+1) digit
2.Size:72x72x105mm, 320x120x250mm
3.Dual windows, 4 digit, 7 segment LED display
4.SMT technology, modular structure, easy and flexible to configuration
5.Multi-points measurement and display, with multi-meters functions as a unit.
6.Multi-protection, strong anti-interference, high ability.
7.Single/Universal input signal: T.C. RTD, mA DC, mV DC….etc
8.Up to 4-points measurement and display ( option)
9.Up to 2 points relay alarm output(option)
10.Alarm can be set and configurable flexible
11.Automatic and manual regular inspection can be shifted flexibly
12.Inspecting time and channel parameter can be set flexibly.
13.Could select 5VDC, 12VDC, 24VDC auxiliary power supply for sensor
14.Could select RS232 port, directly connecting mini printer for data printing.
15.The user can access the data on the screen as well as on site from a remote place via RS485, RS232 serial interface. 16.MODBUS-RTU communication protocol are available for configuration with MCGS and others professional software.
2.Size:72x72x105mm, 320x120x250mm
3.Dual windows, 4 digit, 7 segment LED display
4.SMT technology, modular structure, easy and flexible to configuration
5.Multi-points measurement and display, with multi-meters functions as a unit.
6.Multi-protection, strong anti-interference, high ability.
7.Single/Universal input signal: T.C. RTD, mA DC, mV DC….etc
8.Up to 4-points measurement and display ( option)
9.Up to 2 points relay alarm output(option)
10.Alarm can be set and configurable flexible
11.Automatic and manual regular inspection can be shifted flexibly
12.Inspecting time and channel parameter can be set flexibly.
13.Could select 5VDC, 12VDC, 24VDC auxiliary power supply for sensor
14.Could select RS232 port, directly connecting mini printer for data printing.
15.The user can access the data on the screen as well as on site from a remote place via RS485, RS232 serial interface. 16.MODBUS-RTU communication protocol are available for configuration with MCGS and others professional software.
